Drier Controller
Product Summary
This Industrial Tumber Drier Controller is designed for OEM Laundry and Textile customers who need performance and high reliability using microprocessor technology.
This controller packs a lot of features and yet compact. It employs both temperature and moisture sensing technology to provide perfect dryness of the load. It controls the drying process using either Time-Temperature and Humidity mode. When operate in humidity mode it results in time and energy savings.
At the end of drying cycle, controller has tilting mechanism to unload the materials.
Key Features
- Advanced Microprocessor Technology
- Compact 144x144mm DIN standard ABS Enclosure
- 5 Auto-Dry or Time -Dry programs
- Reliable Construction with Wide Operating Voltage
- Door Open Sensing
- Energy and Time Savings Stops Automatically When Load is Fully Dried
- Residual Moisture Control with Precision Sensor
- Plug-In Connectors for Easy Wiring
Specifications
Inputs
Analog Inputs
- Temperature Sensor (0-120 C)
- Humidity Sensor (0-90 %RH)
Digital Inputs
- Door Sense Switch
- Motor Error
- Phase Error
- Start Push Button
- Stop Push Button
Outputs
Relay Outputs for
- Drum Right Rotation
- Drum Left Rotation
- Heating
- Cooling
- Fan
- Alarm / Hooter
- Cover Lock
- Down
- Up
Protection
- EMI
- Surge
- ESD
Power Supply
- 220V AC (180 - 300VAC)

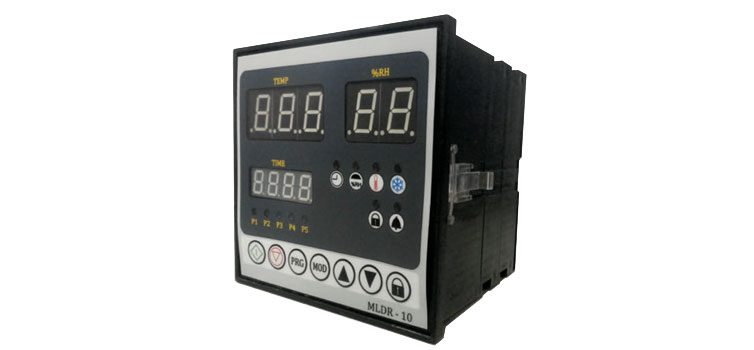

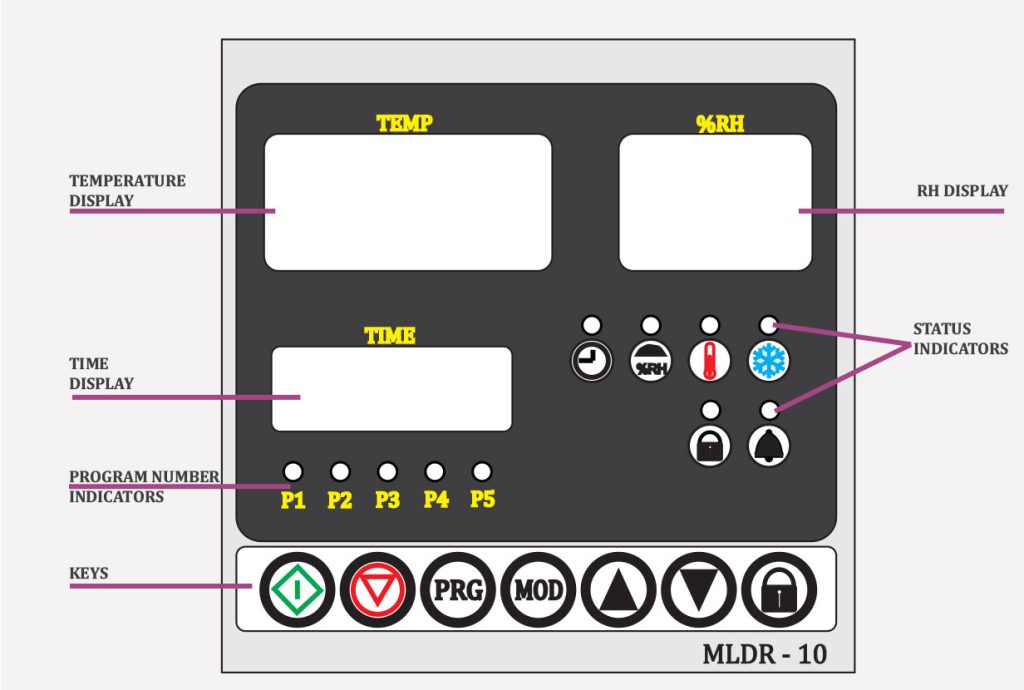

Controller Front Layout
Controller Front Layout
| Mechanical | |
|---|---|
| Dimension | 144mm(W)x144mm(H)x95mm(D) |
| Weight | 500 gm |
| Constructionr | DIN Standard Enclosure 144x144mm |
| Cable Entry | Plug Intype Connectors for Easy Wiring |
| Operating Temp | -5 to +550 C |
| Relative Humidity | 85% Rh with No Condensation |
Controller Rear Layout
Controller Rear Layout
Specification (Contd...)
Display and Indications
- Temperature (0-120 C) - 4 Digital Display
- Humidity (0-99%) - 2 Digital Display
- Time (HH:MM) - 4 Digital Display
- P1 to P5 - 5 Program Indications
Status Indications
- Heating
- Cooling
- Timing
- Alarm
- Door Lock
Specification (Contd...)
Preset Program Selection
- Dry Timer Runings
- Humidity Control
- Heating State
- Cooling State
- Door Open
- Alarm
