Fire Alarm Panel
Fire Alarm Panel
SureFire 6FL 6 zone fire alarm control panel provides a cost effective platform for sensing fire that is reliable, flexible and user-friendly. The panel has been designed with both installer and end user’s requirements of Fire & Security industry in mind. For installer, SureFire 6FL offers an out of the box and on the wall solution.
A combination of quick installation and easy on-site setting allows installers to simply meet the demands of end-users. For end-users, clear visible zone-wise through both LCD & LED indicators makes easy to operate functions make simple and unambiguous operation. An expandable zone from 2/4/6 zones makes the product highly flexible and easily upgradale depending on the see conditions.
Key Features
- Compatable with all major analog smoke detectors like Systom sensors,Apollo, Bosch, Simons etc
- 2 and 4 zone models in the same dimension
- Microprocessor Controlled, User friendly design with LCD display
- Reliable wide operating voltage SMPS suitable for Indian power conditions
- Standby battery backup with digital battery charger and low voltage disconnect
- Relay outputs for every zone
- Zone naming for easy easy zone identification thruogh alphanumeric keypad
- Rs-232/Rs-485 connectivity for remote annunciation/auto dialer
Specifications
Inputs
- Conventional 24V DC Operated smoke detector (upto 20 Nos/Zones)
Power Supply
- 90-270V AC,50Hz ,30watts SMPS
Battery
- Type-12V, 7Ah SMF Battery -1no with charger current-0.7A
Outputs
- Buzzer for all local indicators
- 14VDC/0.7A DC for CC/CV bsttery charging
- Built in hooter-12V operated, min 85 db sound level
- Potential free relay for every zone
- Open collector output 8 Nos drive upto 100mA load
LED Indication
- Fire, Open, Short, Isolate for all zones
Key Functions
- Up, Down, Enter, Back, Test, Reset & Evaucate, Alphanumeric keys
Finish
- Siemens grey powder coating with matt finishing

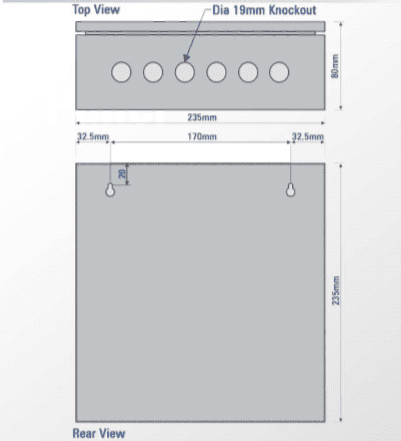

Dimensional Diagram
| Mechanical | |
|---|---|
| Dimension | 235(W)x235(H)x80 (D) mm |
| Weight | 2.5kg(W/O battery) |
| Construction | 16kg for door & 18g for body |
| Cable Entry | Dia 19/{16 Nos} knockouts |
| Operating temp | +5c to 50 C |
| Relative Humidity | 90% RH Non-Condensing |

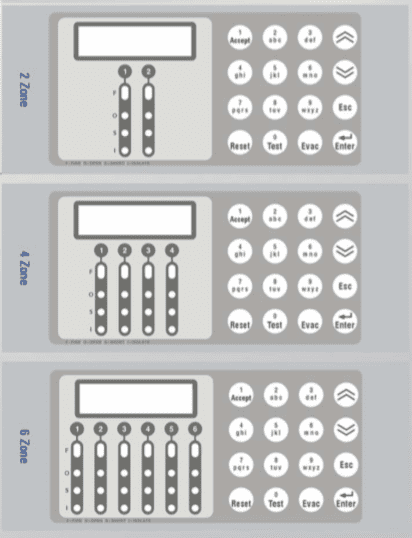

Key board Layout
